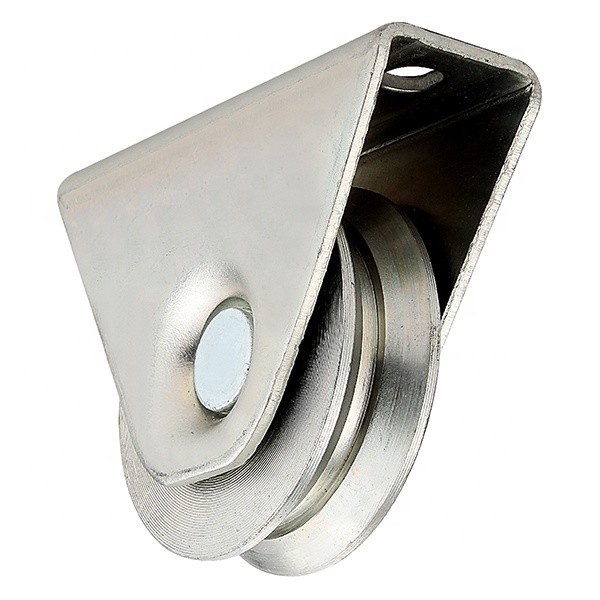

Steel 3.15" 80Mm Sliding Gate Roller Wheels Door Single Bearings
Single Bearings Sliding Gate Wheel Diameter 80 Mm With Support For Sliding Gates
Quick Detail:
Single bearing sliding door wheel 80 mm diameter sliding door with support automatic sliding door. The wheel has double bearings,
which have a higher bearing capacity than single bearings. Galvanized surface, color of white zinc, yellow zinc or color zinc,
according to customer needs to produce.
The choice of guidance system depends on whether the door is flat topped, whether it is tilted, the speed of automation, whether
The fence protrudes from the front of the frame. All guide systems should be designed to ensure that the gate will never tip
over -- even if the roller comes loose.
A semicircular grooved wheel with an external support frame for rolling along a slide. Each wheel has a separate weight class,
So buying multiple wheels can spread the load and support more weight. Bearings with inverted profile rails for flat mounting under doors.
Size: Diameter 40mm/50mm/60mm/70mm/80mm/90mm/100mm/120mm, Can be customized according to customer requirements.
Finish: Plated finish.
Material: made of high quality galvanized steel.
Color: White, Yellow
Groove: Y Groove, Used With V Gate Track.

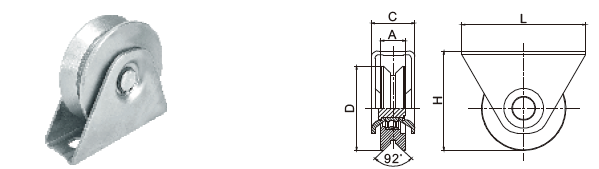

Product Description:
| NO. | D mm | A | C | H | L | WT(g) |
| HT1Y40 | 38 | 12 | 20 | 44 | 58 | 132 |
| HT1Y50 | 50 | 15 | 25 | 57 | 75 | 257 |
| HT1Y60 | 58 | 17 | 28 | 64 | 85 | 387 |
| HT1Y70 | 68 | 20 | 35 | 80 | 100 | 616 |
| HT1Y80 | 78 | 20 | 35 | 85 | 100 | 779 |
| HT1Y90 | 98 | 20 | 36 | 100 | 132 | 1108 |
| HT1Y100 | 88 | 22 | 36 | 105 | 132 | 1371 |
| HT1Y120 | 118 | 25 | 37 | 127 | 158 | 2307 |
Applications:
For high-traffic, commercial sliding gates track applications
Packing & Loading:
Company Profile:
Jiaxing Jinnaike Hardware Products Co. Ltd. is a leading worldwide manufacturer in Jiaxing based since 1995, Our company is a professional
and successful manufacturer of gate hardware which are used for sliding gate, swing gate and cantilever gate. By endless hard-working and
innovation in the past years, our company has become the leading producer of this industry in China.
We are backed by powerful technology and production, 20000 M2 space plant, (high-speed) stamping machines (1pc /400T, 3pcs/80T, 7pcs/40T,
8pcs/25T, 2pcs/16T), track making machines, wire cutting machines, milling machines, tooling making team, technical team, well-trained
production staffs, aggressive management and sales team who has shown dedicated performance standards and made us experienced supplier
to the international frontiers.
Equipment
In order to meet customer needs and maximize market opportunities, we continue to expand product specifications and varieties.
Therefore, not only can we use the customer's own label/logo/brand on the existing products, but we can also, according to their
specifications,
New products can even be made with existing machines or tools.
Sourcing low-cost, reliable products directly from Chinese factories has become an integral part of life and can help you beat the
competition around you.
Adhering to the concept of "Grow with the growth of customers", we are committed to becoming your most trusted partner in China.
Products
Now we have hundreds of products, such as sliding door wheel, door rail, door stop, door hinge, adjustable hinge, cantilever door
wheel, roller bracket, guide wheel, nylon roller, column cap, rack and pinion, steel bracket with roller, barn door hardware and so on.
Our products are popular all over the world because of their high quality and competitive price.
Certificates
To pursue market opportunity actively and meet customer demands to a great extent, our company keeps improving the products with more
specifications and varieties. Marketing coverage is steadily expanding.
Enjoying a good reputation from all the customers worldwide, we are a reliable partner you can trust in China.
Staff Life
There are 150 employees with our company presently. The company attaches importance to the protection of employees' legitimate interests and
rights, and provide good salary and growth space for employees. Therefore, employees also feel the care and warmth from the company.
Why Choose Us
o Complete Products
We can supply full set products and accessories for gate, door, and fence, to save your money and time to search for suppliers everywhere.
o OEM Service
We are a manufacturer which can provide professional OEM service for you, our professional and experienced R&D and production department
can develop and custom produce the new products for you according to your technical drawing or samples.
o Cost
We are a manufacturer which has our own factories, this makes sure our offer is always very competitive and reasonable.
o Quality
Our company and the quality of our products are controlled by ISO9001:2008 quality management system, and we had also got through the SGS
and BV certification. Our company is aimed at the high-end market of all over the world, our products can meet the international standard, they
are quality, very durable and reliable, and are mainly exported to the European & American market.
o Production Capacity
We can produce 15-20 standard container’s products per month, to make sure we can meet the different procurement requirements from our
customers.
o Service
our company offers a full range of experienced and good service for production, quality checking, packaging, logistics,custom declaration,
international transportation, to reduce your troubles on the products and import operations. On the other hand, our company is very close to
Shanghai and Ningbo port, it’s very convenient.
Product Tags:
|
|
Steel 3.15" 80Mm Sliding Gate Roller Wheels Door Single Bearings Images
|
